GC Series Granulator
GC Series Granulator
Typical Applications Include:
- Plastics – mouldings, profiles, films, etc.
- Rubber – tyre rubber, reclaim rubber products, etc.
- Paper & cardboard – confidential documents, production waste, packaging materials, etc.
- Textiles – carpet (rolls and tiles), etc.
- Copper cable – household, telecoms and industrial cables including S.W.A.
- Foam – production waste, etc.
Description

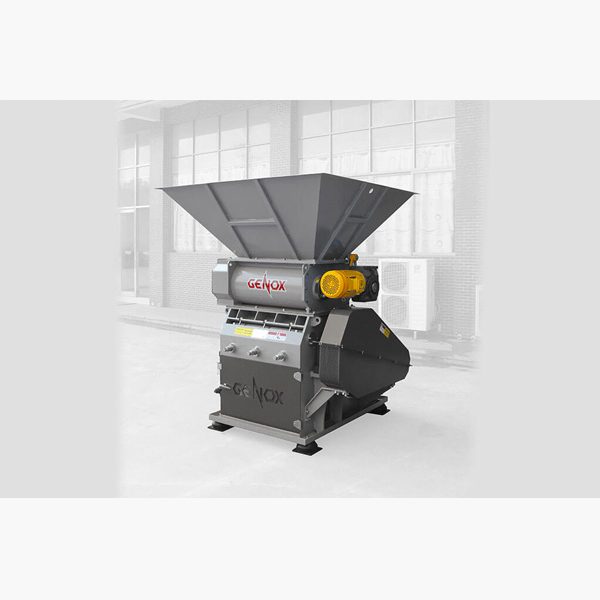

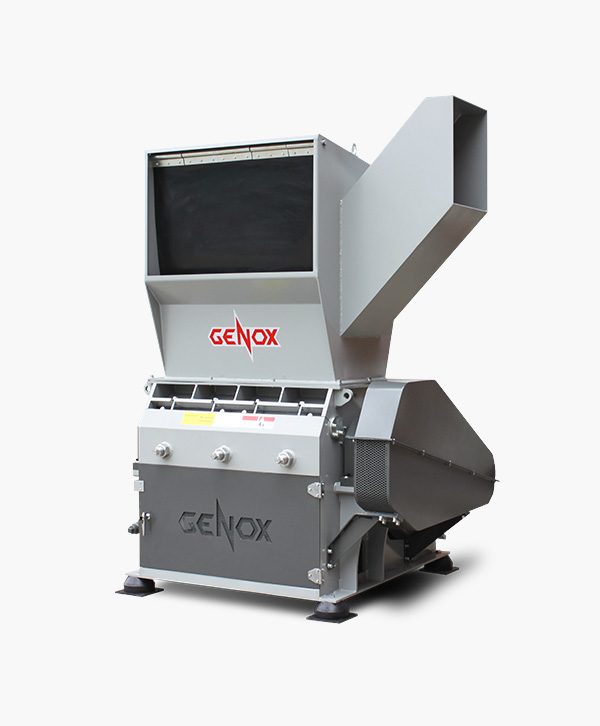

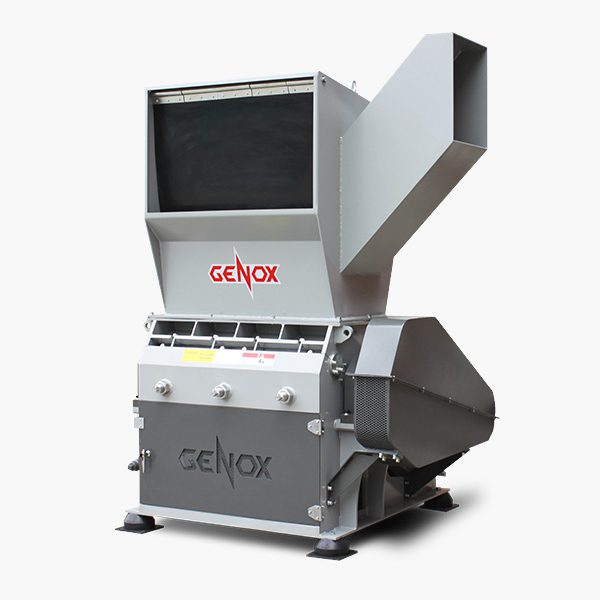

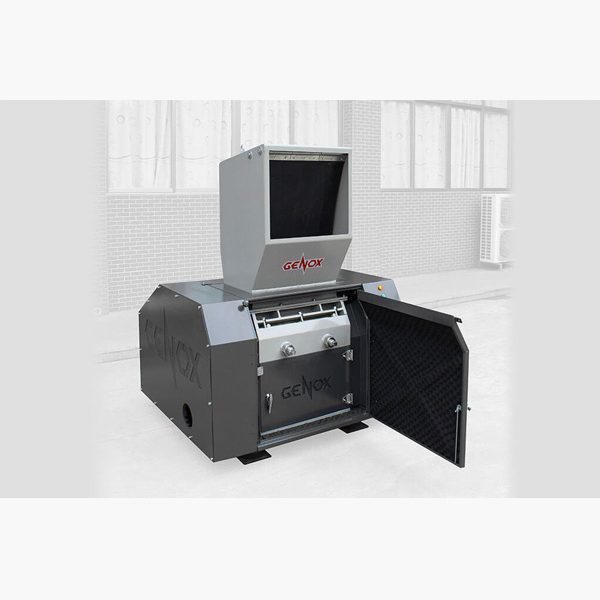

The GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass. Characterised by their high efficiency, reduced power consumption and low noise, sound proof designs, these machines are ideal for processing a multitude of materials including plastics, rubber and fibres, amongst others.
Features
- Compact design minimises on-site space requirements

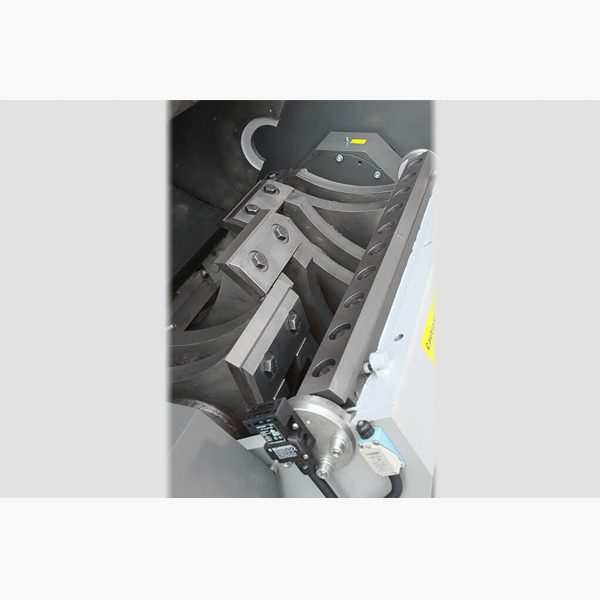

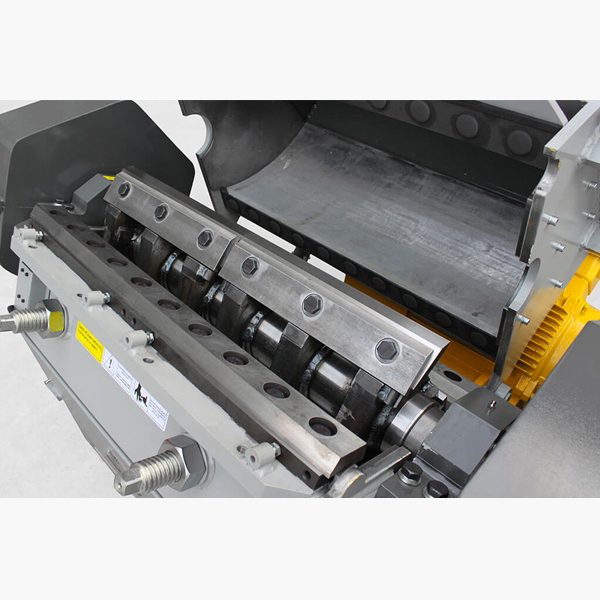

- Inclined, split cutting chamber design
- Oversized, outboard mounted spherical rotor bearings, preventing bearing damage due to product migration

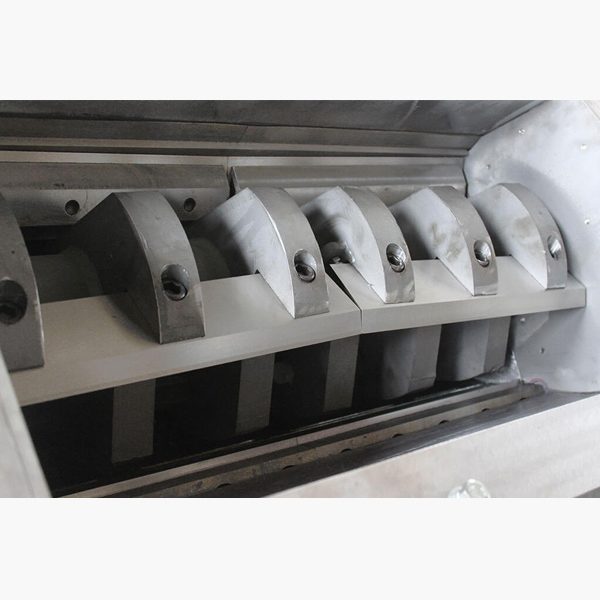

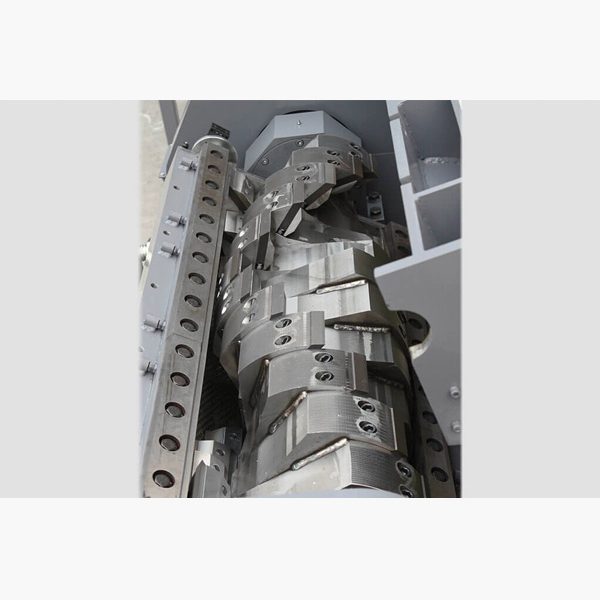

- Precision machined rotors – forward set V-Rotor as standard
- Replaceable wear plates at either side of the cutting chamber
- Standard machines are prepared for air extraction
- Replaceable wear plates at either end of the rotor shaft
- Stand-alone electrical control panel, with Schneider components and Siemen’s PLCs
- Tested, approved and certified to the applicable CE safety standards
Specifications
GC600
| Model | GC600 |
| Dimension (L x W x H) (mm) | 1200 × 1330 × 1850 |
| Hopper Opening (L x H) (mm) | 560 × 500 |
| Rotation Diameter (mm) | Φ260 |
| Operation Length (mm) | 600 |
| Rotation Speed (RPM) | 580 |
| Screen Size(mm) | Φ12 |
| Number of Rotor Knives | 3x2 |
| Number of Counter Knives | 2x2 |
| Main Drive (kW) | 15 |
| Weight (kg) | Approx 1000 |
GC600T~GC800
| Model | GC600T | GC800 |
| Dimension (L x W x H) (mm) | 1380 × 1170 × 2200 | 1380 × 1370 × 2200 |
| Hopper Opening (L x H) (mm) | Φ320 | Φ320 |
| Rotation Diameter (mm) | Φ260 | Φ260 |
| Operation Length (mm) | 600 | 800 |
| Rotation Speed (RPM) | 580 | 580 |
| Screen Size(mm) | Φ12 | Φ12 |
| Number of Rotor Knives | 3x2 | 3x2 |
| Number of Counter Knives | 2x1 | 2x1 |
| Main Drive (kW) | 22 | 30 |
| Weight (kg) | Approx 1500 | Approx 1800 |
GC800T~GC1000
| Model | GC800T | GC1000 |
| Dimension (L x W x H) (mm) | 1580 × 1440 × 2300 | 1580 × 1640 × 2300 |
| Hopper Opening (L x H) (mm) | 760 × 615 | 960 × 615 |
| Rotation Diameter (mm) | Φ420 | Φ420 |
| Operation Length (mm) | 800 | 1000 |
| Rotation Speed (RPM) | 580 | 580 |
| Screen Size(mm) | Φ12 | Φ12 |
| Number of Rotor Knives | 3x2 | 3x2 |
| Number of Counter Knives | 2x1 | 2x1 |
| Main Drive (kW) | 37 | 45 |
| Weight (kg) | Approx 3000 | Approx 3500 |
