M Series Shredders
M Series Shredders
Typical Applications Include:
- Plastics – Mixing Plastics, Plastic Drums or Containers, etc.
- Electronic Scrap – WEEE Directive Materials, etc.
- Tyres – Car Tyres, Debeaded Truck Tyres, etc.
- Timber/Wood – Pallets, Joiners Waste, Green Waste, etc.
- Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials, etc.
- Metals – Lead, Aluminium, Copper, etc.
- Textiles – Carpet (Rolls & Tiles), Garments, etc.
- Foam – Production Waste etc.
- Mixed Household & Commercial Waste – RDF/SRF Production.
Description

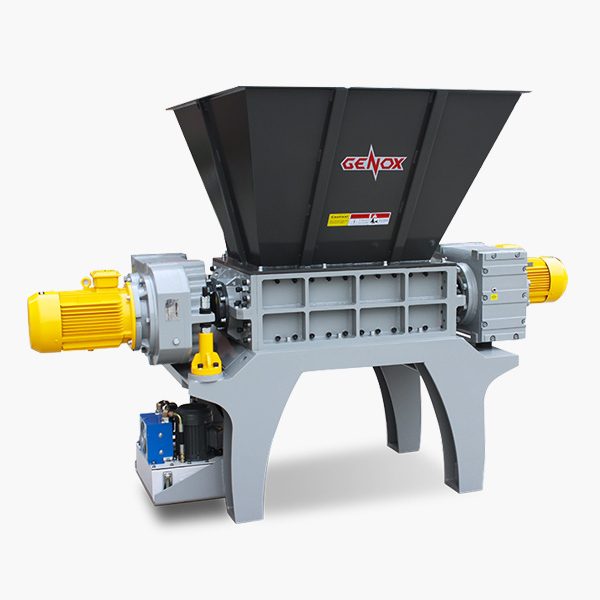

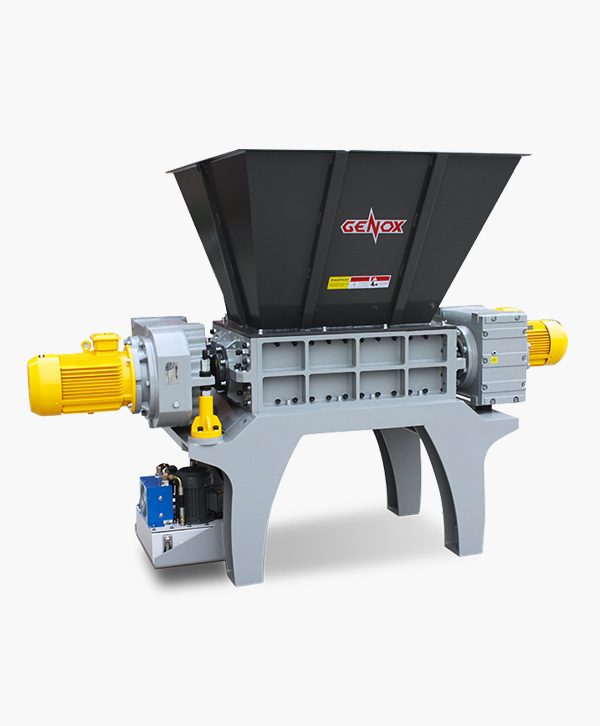

The M Series Twin Shaft Shredders operate at low speed with high torque, minimising noise and power consumption while achieving high throughput rates. This series is ideal for the size reduction of bulky or voluminous materials which could include contamination such as metals or stones.
Features
- Slow speed high torque shredding principle.
- low dust and low noise operation.

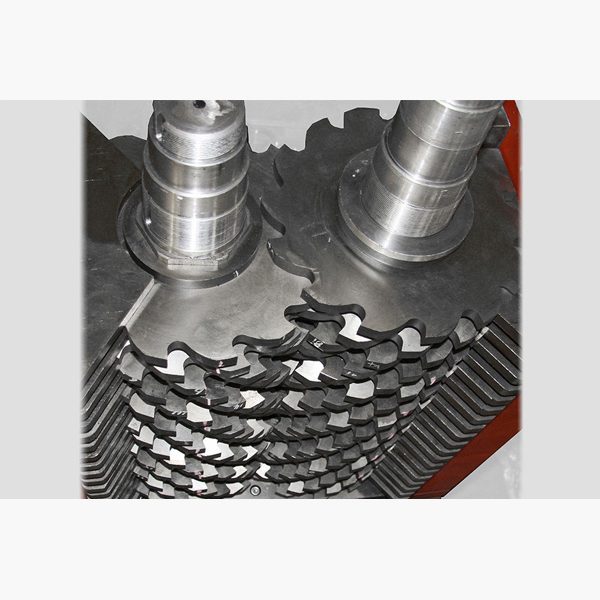

- Strong blades manufactured from high quality steels.

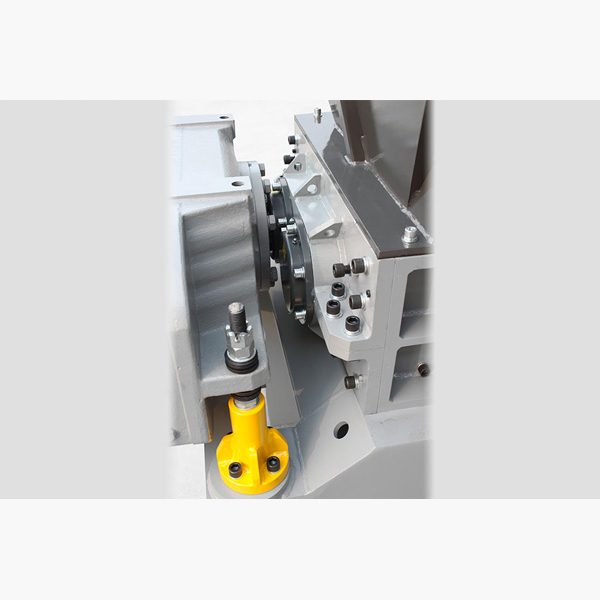

- Shock-absorbing gearbox mounting arrangement reduces stress on drive components.
- Two-piece split bearing housing arrangement.
- Advanced adjustable sealing system prevents product migration and ensures long bearing service life.
- Hydraulic force feeder
- Stand-alone electrical control panel with Siemens PLC control system.
- Rugged, low maintenance design.
- Tested, approved and certified to the applicable CE safety standards.
Specifications
M300~M800
| Model | M300 | M400 | M600 | M800 |
| Dimension (L x W x H) (mm) | 1500 x 1225 x 1850 | 1600 x 1225 x 1850 | 2530 x 1270 x 1850 | 2710 x 1270 x 1850 |
| Hopper Opening (L x H) (mm) | 300 x 480 | 400 x 480 | 600 x 480 | 800 x 480 |
| Discharge Height (mm) | 600 | 600 | 640 | 640 |
| Rotation Diameter (mm) | Φ276 | Φ276 | Φ276 | Φ276 |
| Rotation Speed (RPM) | 13/7.7 | 13/7.7 | 14 | 14 |
| Number of Blades (PCS) | 15 | 10+10 | 15+15 | 20+20 |
| Blade Width (mm) | 20 | 20 | 20 | 20 |
| Main Drive (kW) | 7.5 | 7.5 | 5.5+5.5 | 7.5+7.5 |
| Hopper Volume(L) | 480 | 550 | 650 | 750 |
| Weight (kg) | Approx 1370 | Approx 1470 | Approx 2100 | Approx 2300 |
M800T~M1200
| Model | M800T | M1000 | M1200 |
| Dimension (L x W x H) (mm) | 3050 x 1850 X 2200 | 3320 x 1890 X 2200 | 3580 x 1965 x 2200 |
| Hopper Opening (L x H) (mm) | 800 x 725 | 1000 x 725 | 1200 x 725 |
| Discharge Height (mm) | 875 | 875 | 875 |
| Rotation Diameter (mm) | Φ430 | Φ430 | Φ430 |
| Rotation Speed (RPM) | 15 | 15 | 15 |
| Number of Blades (PCS) | 10+10 | 13+12 | 15+15 |
| Blade Width (mm) | 40 | 40 | 40 |
| Main Drive (kW) | 15+15 | 18.5+18..5 | 22+22 |
| Hopper Volume(L) | 950 | 1130 | 1360 |
| Weight (kg) | Approx 4010 | Approx 4520 | Approx 5120 |
