GXC Series Granulator
GXC Series Granulator
Typical Applications Include:
- Plastics – mouldings, profiles, films, etc.
- Rubber – tyre rubber, reclaim rubber products, etc.
- Paper & cardboard – confidential documents, production waste, packaging materials, etc.
- Textiles – carpet (rolls and tiles), etc.
- Copper cable – household, telecoms and industrial cables including S.W.A.
- Foam – production waste, etc.
Description

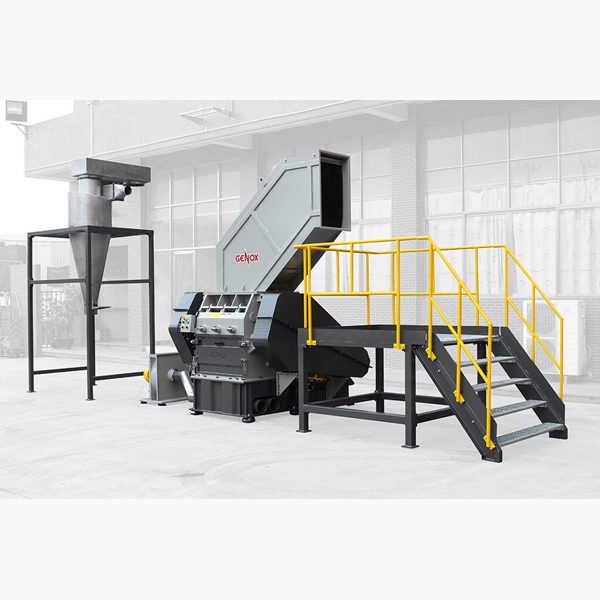

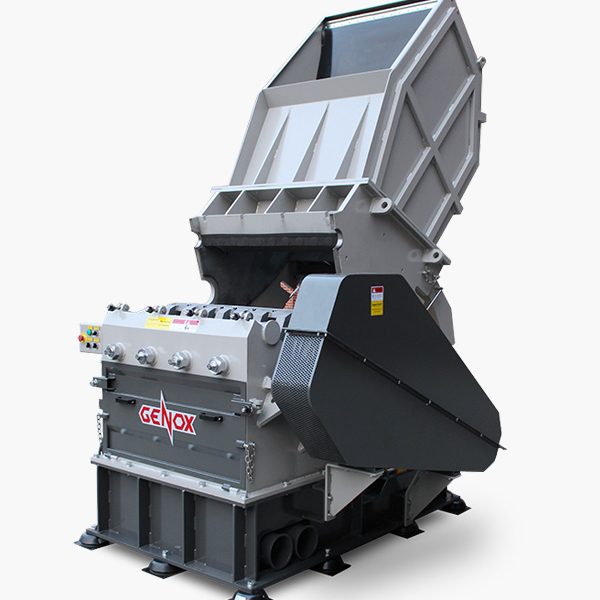

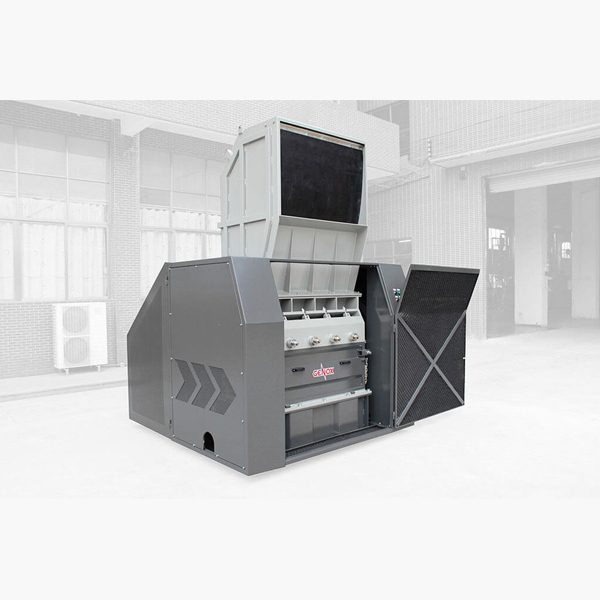

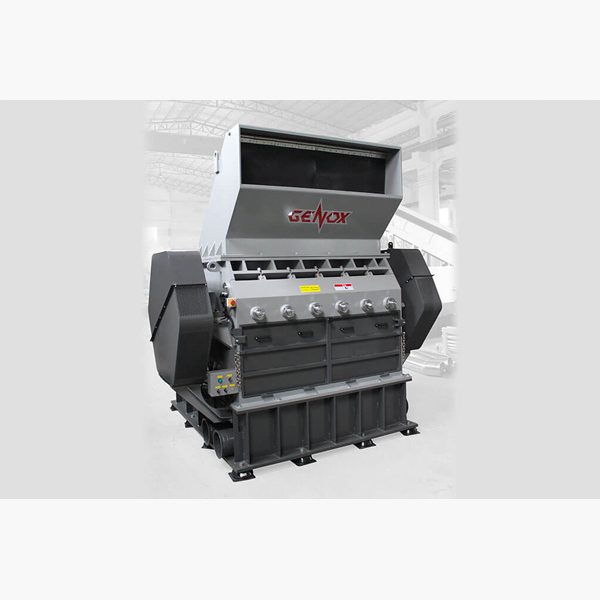

The GXC Series Heavy Duty Granulators are made for high throughput size reduction of larger sized products in a single pass. These machines can also be used for secondary granulation when positioned behind pre-shredders in various types of recycling systems. With various methods of wear protection, including replaceable wear plates and resistant surface coatings, the GXC series are well equipped to process abrasive, contaminated materials, such as glass-filled plastics and dirty films containing sand.
Features
- Strong welded construction from heavy gauge steel plate
- Inclined, split cutting chamber design
- Oversized, outboard spherical rotor bearings, preventing bearing damage due to product migration
- Precision machined rotors – forward set V-rotor as standard
- Replaceable wear plates at either end of the rotor shaft
- Manual, electric and hydraulic chamber opening mechanisms
- Quick access to the cutting chamber for maintenance and machine clean-downs
- Stand-alone electrical control panel, with Schneider components and Siemens PLCs
- Tested, approved and certified to the applicable CE safety standards
Specifications
GXC800~GXC1200
| Model | GXC800 | GXC1000 | GXC1200 |
| Dimension (L x W x H) (mm) | 2165 × 1780 × 3090 | 2165 × 1980 × 3090 | 2165 × 2180 × 3090 |
| Hopper Opening (L x H) (mm) | 750 × 820 | 950 × 820 | 1150 × 820 |
| Rotation Diameter (mm) | Ø 520 | Ø 520 | Ø 520 |
| Operation Length (mm) | 800 | 1000 | 1200 |
| Rotation Speed (RPM) | 520 | 520 | 520 |
| Screen Size(mm) | Ø 12 | Ø 12 | Ø 12 |
| Number of Rotor Knives | 5×2 | 5×2 | 5×2 |
| Number of Counter Knives | 3×1 | 3×2 | 3×2 |
| Main Drive (kW) | 55~75 | 55~90 | 75~90 |
| Hydraulic Power Pack(kW) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | Approx 4400 | Approx 4900 | Approx 5500 |
GXC1000T~GXC1600T
| Model | GXC1200G | GXC1600G | GXC2000G |
| Dimension (L x W x H) (mm) | 2490 × 2070 × 3330 | 2490 × 2270 × 3330 | 2490 × 2670 × 3330 |
| Hopper Opening (L x H) (mm) | 950 × 1020 | 1150 × 1020 | 1550 × 1020 |
| Rotation Diameter (mm) | Ø 660 | Ø 660 | Ø 660 |
| Operation Length (mm) | 1000 | 1200 | 1600 |
| Rotation Speed (RPM) | 520 | 520 | 520 |
| Screen Size(mm) | Ø 12 | Ø 12 | Ø 12 |
| Number of Rotor Knives | 7×2 | 7×2 | 7×2 |
| Number of Counter Knives | 3×2 | 3×2 | 3×2 |
| Main Drive (kW) | 75~110 | 90~132 | 110~160 |
| Hydraulic Power Pack(kW) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | Approx 6200 | Approx 7250 | Approx 8500 |
GXC1200G~GXC2000G
| Model | GXC1200G | GXC1600G | GXC2000G |
| Dimension (L x W x H) (mm) | 2650 × 2470 × 3900 | 2650 × 2870 × 3900 | 2650 × 3270 × 3900 |
| Hopper Opening (L x H) (mm) | 1160 × 1150 | 1560 × 1150 | 1960 × 115 |
| Rotation Diameter (mm) | Ø 800 | Ø 800 | Ø 800 |
| Operation Length (mm) | 1200 | 1600 | 2000 |
| Rotation Speed (RPM) | 480 | 480 | 480 |
| Screen Size(mm) | Ø 12 | Ø 12 | Ø 12 |
| Number of Rotor Knives | 9×2 | 9×4 | 9×4 |
| Number of Counter Knives | 3×2 | 3×2 | 3×4 |
| Main Drive (kW) | 110~160 | 160~250 | 250~315 |
| Hydraulic Power Pack(kW) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | Approx 9300 | Approx 11800 | Approx 15500 |
