BH Series Shredders

BH Series Shredders

Typical Applications Include:

  • Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials, etc.
  • Copper Cable – Household, Telecoms and Industrial Cables including S.W.A.
  • Plastics – Mouldings, Purging/Lump, Profiles, Films, etc.
  • Timber/Wood – Pallets, Joiners Waste, Green Waste, etc.
  • Aluminium – Used Beverage Cans (UBC’s), Swarf, Cables, etc.
  • Foam – Production Waste, etc.
  • Textiles – Carpet (Rolls & Tiles), Garments, etc.
  • Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock, etc.
  • Mixed Household & Commercial Waste – RDF/SRF Production.

Share this product

Description

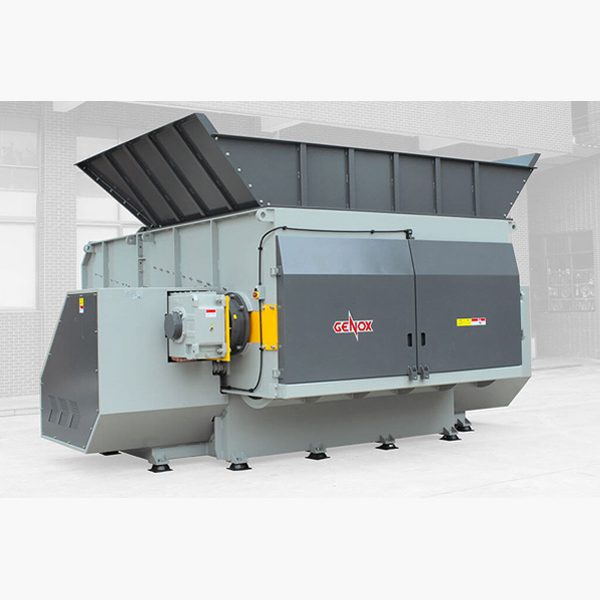

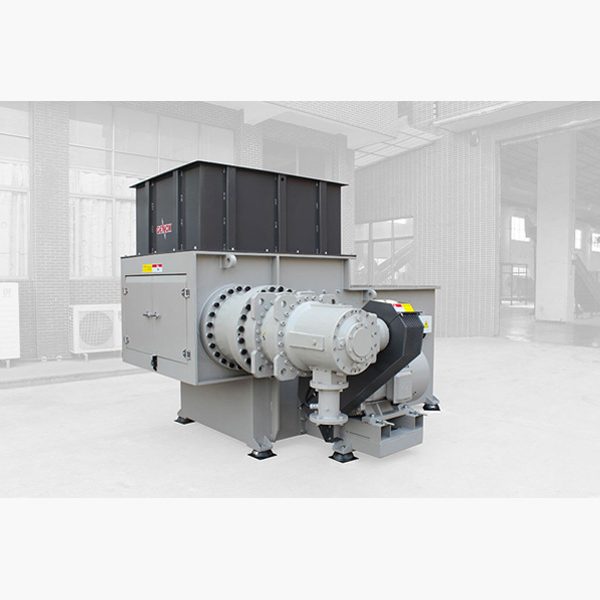

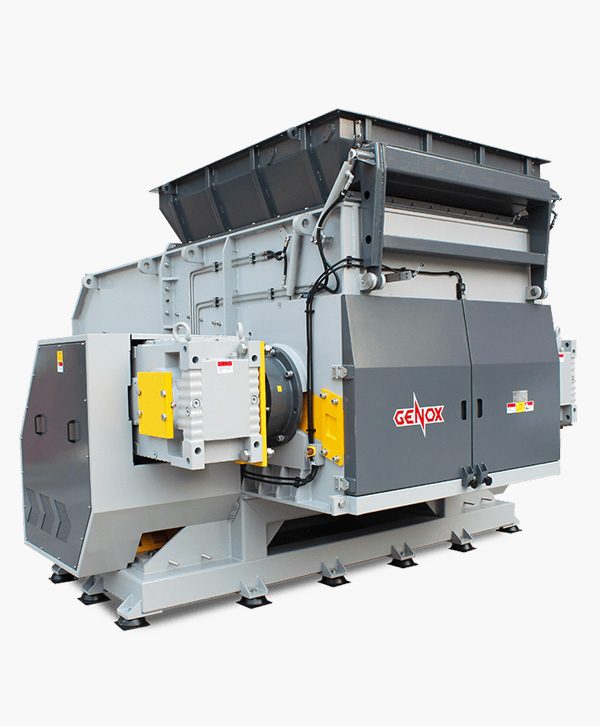

The BH Series Single Shaft Shredders are heavy duty size reduction machines designed specifically for processing a wide range of materials. These shredders are ideal for hard and voluminous products, and the powerful, wear-resistant machine structure makes it a well-suited option for demanding recycling tasks.

Features

  • Energy Efficient + maximum cutting force & productivity

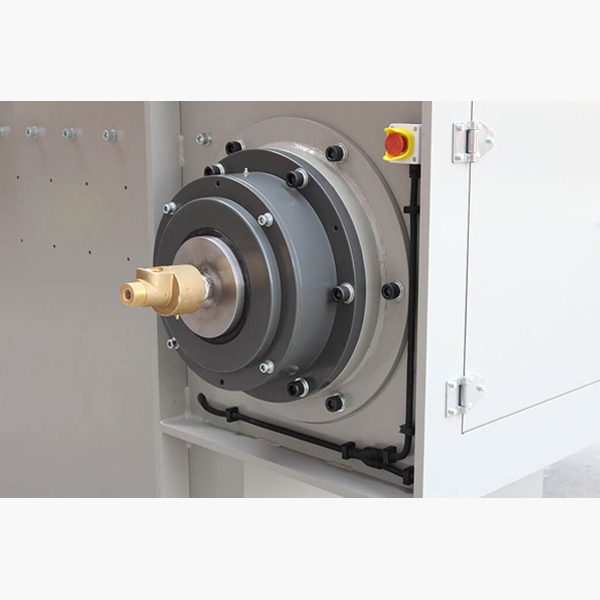

  • Shock absorbing gearbox reduces stress on drive components

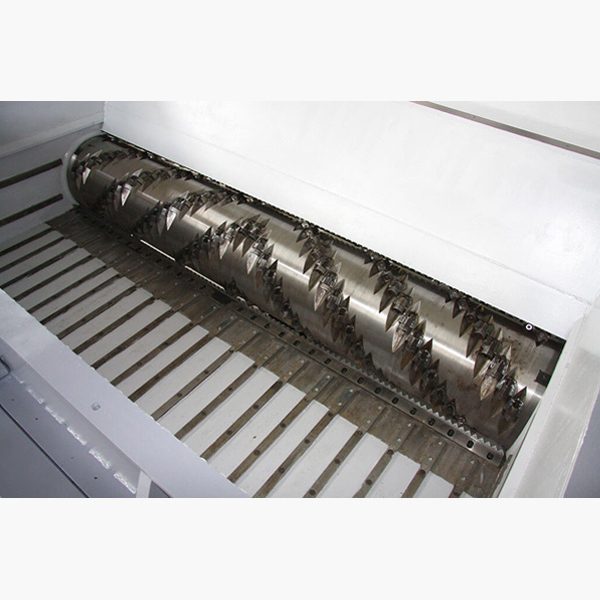

  • Rotor Knives can be rotated and used on four edges
  • Quick Change screens for accurate particle size control
  • Twin speed hydraulics with integrated air cooler
  • Pusher drawer mounted on heavy duty rollers
  • Long life counter Knives can be adjusted to maintain cutter clearance
  • Segmented shredding chamber floor with brass guides
  • Stand-alone electrical Control Panel with Siemens PLC control system
  • Tested, approved and certified to the applicable CE safety standards

Specifications

BH1500~BH2000
Model BH1500 BH2000
Dimension (L x W x H) (mm) 3710 × 2880 × 2530 3710 × 4150 × 2530
Hopper Opening (L x H) (mm) 2080 × 1880 2080 × 2380
Discharge Height (mm) 720 720
Rotation Diameter (mm) Φ480 Φ480
Operation Length (mm) 1500 2000
Rotation Speed (RPM) 80 80
Ram (mm) 1100 1100
Number of Rotor Knives  84+6  95+6
Number of Counter Knives 3+3 4+4
Main Drive (kW) 90 55+55
Hydraulic Power Pack (kW) 2.25 2.25
Weight (kg) Approx 11110 Approx 14800
BH1700~BH2800
Model BH1700 BH2200 BH2800
Dimension (L x W x H) (mm) 3920 × 2750 × 2720 3920 × 4500 × 2720 3920 × 5600 × 2720
Hopper Opening (L x H) (mm) 2380 × 2080 2380 × 2580 2380 × 3180
Discharge Height (mm) 720 720 720
Rotation Diameter (mm) Φ650 Φ650 Φ650
Operation Length (mm) 1650 2240 2840
Rotation Speed (RPM) 80 80 80
Ram (mm) 1100 1100 1100
Number of Rotor Knives 94+6 109+6 125+6
Number of Counter Knives 3+3 4+4 5+5
Main Drive (kW) 132 90+90 110+110
Hydraulic Power Pack (kW) 7.5 15 15
Weight (kg) Approx 13800 Approx 18000 Approx 21000
BH1800~BH3000
Model BH1800 BH2400 BH3000
Dimension (L x W x H) (mm) 4070 × 4070 × 2870 4070 × 4670 × 2870 4070 × 5270 × 2870
Hopper Opening (L x H) (mm) 2530 × 2180 2530 × 2780 2530 × 3380
Discharge Height (mm) 800 800 800
Rotation Diameter (mm) Φ800 Φ800 Φ800
Operation Length (mm) 1790 2390 2990
Rotation Speed (RPM) 80 80 80
Ram (mm) 1100 1100 1100
Number of Rotor Knives 106+6 124+6 156+6
Number of Counter Knives 3+3 4+4 5+5
Main Drive (kW) 90+90 132+132 160+160
Hydraulic Power Pack (kW) 11 15 15
Weight (kg) Approx 16000 Approx 20000 Approx 27000
