V Series Shredders
V Series Shredders
Typical Applications Include:
- Plastics – mouldings, purging/lump, profiles, films etc.
- Timber/Wood – pallets, joiners Waste, green waste etc.
- Paper & cardboard – confidential documents, production waste, packaging materials etc.
- Textiles – carpet (rolls & tiles), garments etc.
- Aluminium – used beverage cans (UBC’s), swarf, cables etc.
- Copper – household, automotive, telecoms and industrial cables including S.W.A.
- Security destruction – counterfeit items, faulty goods, out of date stocks, etc.
- Foams – production waste, insulation materials, product fillings, etc.

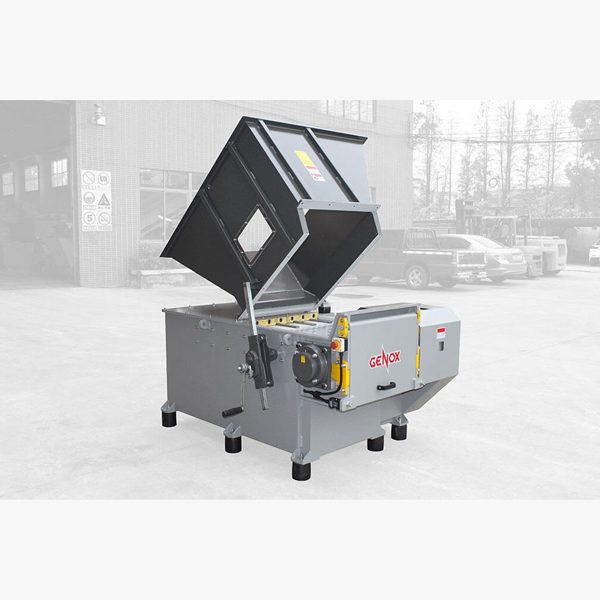

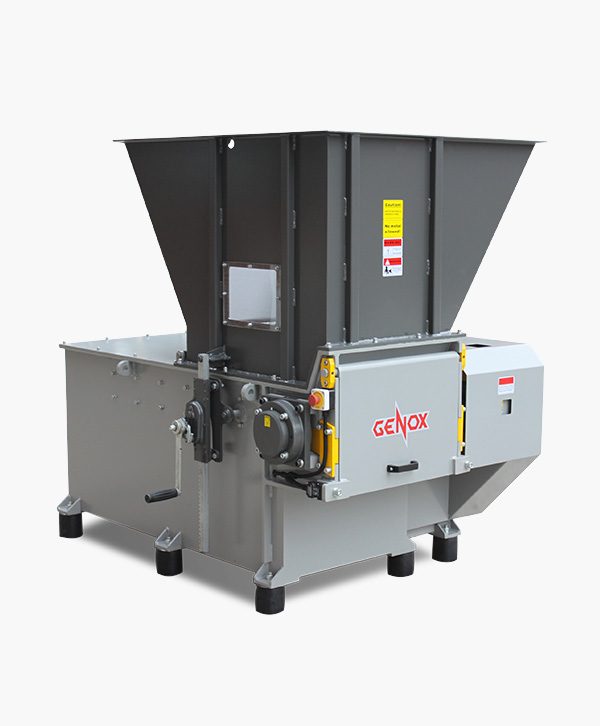

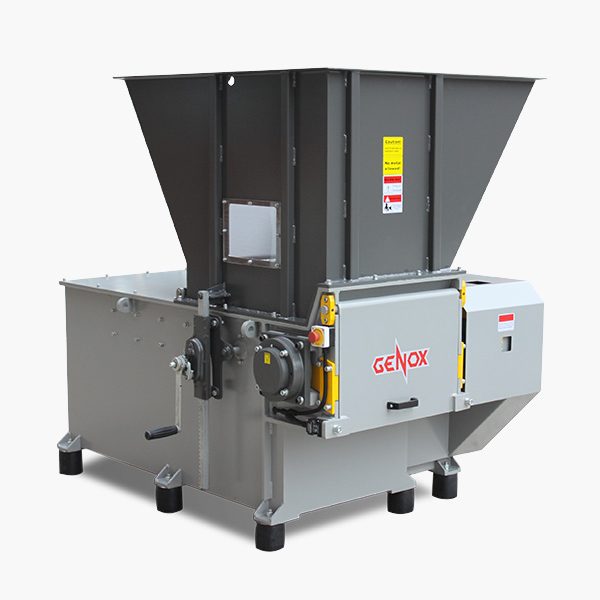

Description
The V Series Single Shaft Shredders are small to medium size reduction machines used to process a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs range between 300kg/hr – 5000kg/hr+ depending on the model, material type, screen size and application.
Features
- Energy efficient + maximum cutting force and productivity
- Shock absorbing gearbox

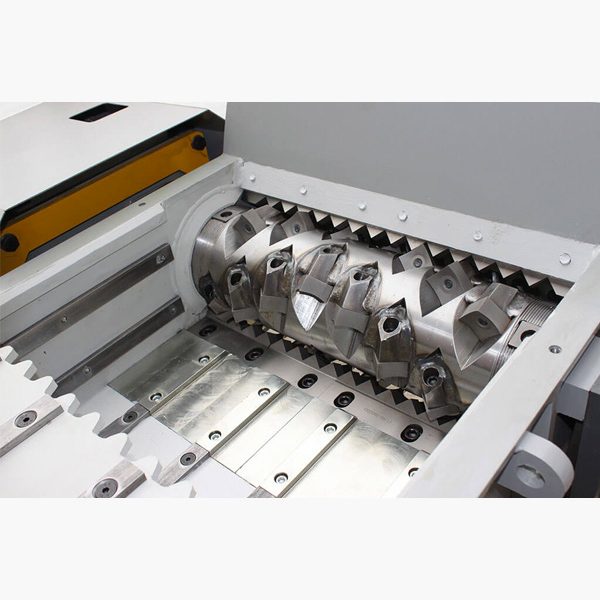

- V-cutting rotor design
- Long life counter knives that can be adjusted
- Quick change screens for accurate particle size control
- Segmented shredding chamber floor with brass guides

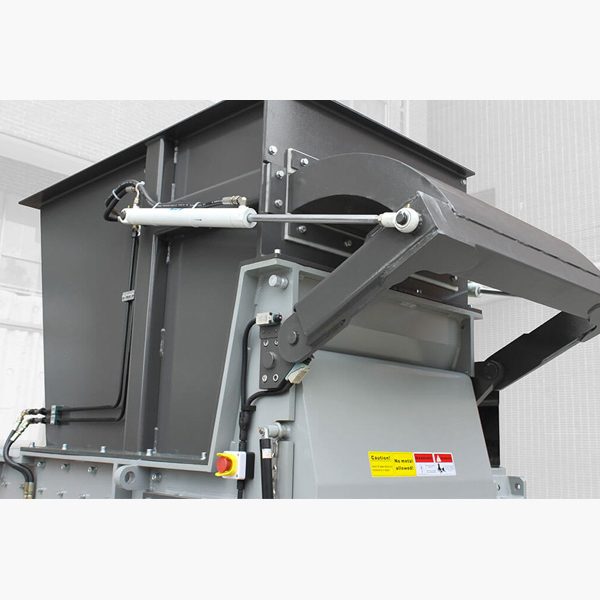

- Twin speed hydraulics with integrated air cooler
- Stand-alone electrical control panel with Siemens PLC control system
- Tested, approved and certified to the applicable CE safety standards
Specifications
V400
| Model | V400 |
| Dimension (L x W x H) (mm) | 1400 × 960 × 1720 |
| Hopper Opening (L x H) (mm) | 1000 × 830 |
| Discharge Height (mm) | 240 |
| Rotation Diameter (mm) | Φ165 |
| Operation Length (mm) | 400 |
| Rotation Speed (RPM) | 92 |
| Ram (mm) | 350 |
| Screen Size(mm) | Φ40 |
| Number of Rotor Knives | 13+2 |
| Number of Counter Knives | 2+2 |
| Main Drive (kW) | 7.5 |
| Hydraulic Power Pack (kW) | 0.75 |
| Weight (kg) | Approx 750 |
V500~V600
| Model | V500 | V600 |
| Dimension (L x W x H) (mm) | 1820 × 1200 × 1730 | 1820 × 1300 × 1730 |
| Hopper Opening (L x H) (mm) | 1200 × 990 | 1200 × 1090 |
| Discharge Height (mm) | 485 | 485 |
| Rotation Diameter (mm) | Φ220 | Φ220 |
| Operation Length (mm) | 500 | 600 |
| Rotation Speed (RPM) | 80 | 80 |
| Ram (mm) | 500 | 500 |
| Screen Size(mm) | Φ40 | Φ40 |
| Number of Rotor Knives | 19+4 | 23+4 |
| Number of Counter Knives | 4 | 4 |
| Main Drive (kW) | 15 | 18 |
| Hydraulic Power Pack (kW) | 2.25 | 2.25 |
| Weight (kg) | Approx 1500 | Approx 1750 |
V800~V1500
| Model | V800 | V1000 | V1200 | V1500 |
| Dimension (L x W x H) (mm) | 2800 × 1800 × 2080 | 2800 × 2000 × 2080 | 2800 × 2500 × 2130 | 2800 × 2750 × 2130 |
| Hopper Opening (L x H) (mm) | 1500 × 1430 | 1700 × 1430 | 1900 × 1430 | 2100 × 1430 |
| Discharge Height (mm) | 565 | 565 | 565 | 565 |
| Rotation Diameter (mm) | Φ400 | Φ400 | Φ400 | Φ400 |
| Operation Length (mm) | 800 | 1000 | 1200 | 1400 |
| Rotation Speed (RPM) | 80 | 80 | 80 | 80 |
| Ram (mm) | 815 | 815 | 815 | 815 |
| Screen Size(mm) | Φ40 | Φ40 | Φ40 | Φ40 |
| Number of Rotor Knives | 35+4 | 45+4 | 55+4 | 78+4 |
| Number of Counter Knives | 2+2 | 2+2 | 3+3 | 3+3 |
| Main Drive (kW) | 37 | 45 | 55 | 75 |
| Hydraulic Power Pack (kW) | 3.75 | 3.75 | 5.5 | 5.5 |
| Weight (kg) | Approx4200 | Approx4500 | Approx5300 | Approx7300 |
