X Series Shredders
X Series Shredders
Typical Applications Include:
- Tyres – car, truck, and OTR (Off The Road)
- Steel – car body shells, sheet scrap, drums
- Electronic scrap – WEEE directive materials
- Wood/Timber – pallets, C&D waste
- Aluminium – castings, profiles
- Bulky waste – mixed household, commercial, pulper waste from paper industry
Description

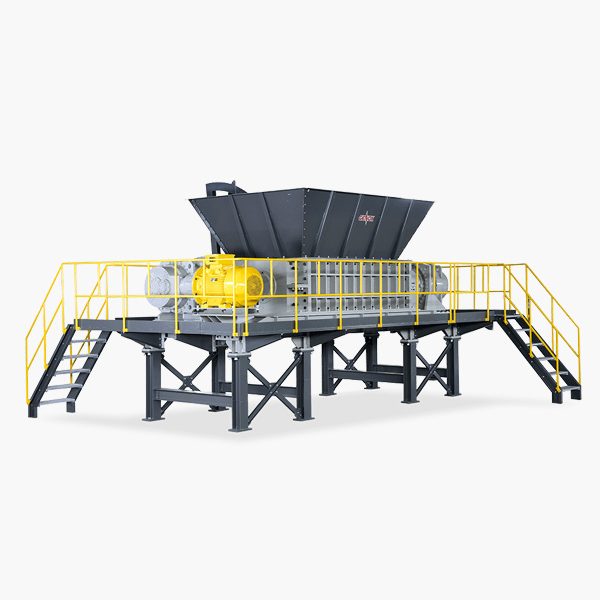

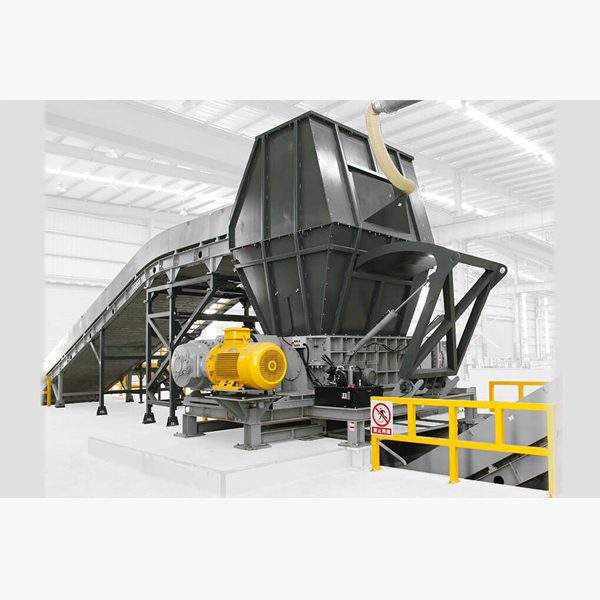

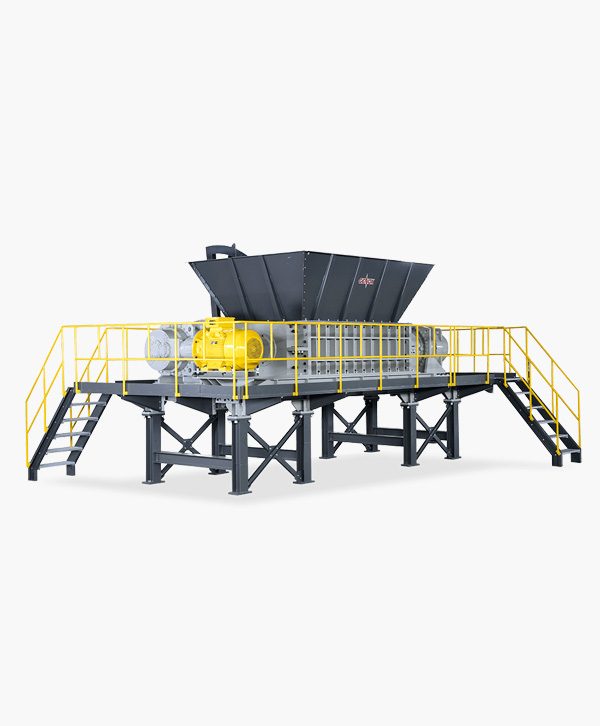

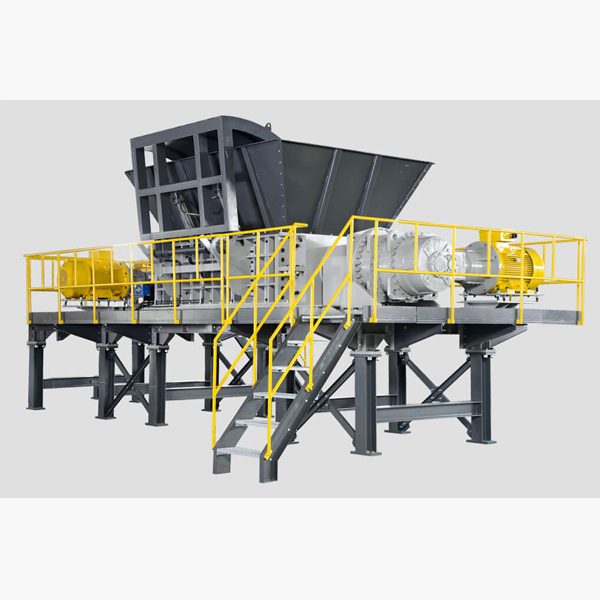

The X Series Twin Shaft Shredders are extremely high torque, high throughput, rotating shear type size reduction machinese. These large and robust shredders are ideal for pre-shredding of large volume or high strength materials which may contain contamination. The unique modular split chamber design gives excellent access to key components, which reduces maintenance downtime and service costs.
Features
- Slow speed high torque shredding principle
- Low dust and low noise operation, as well as rugged low maintenance design
- Shock absorbing shaft couplings between gearboxes and blade shafts

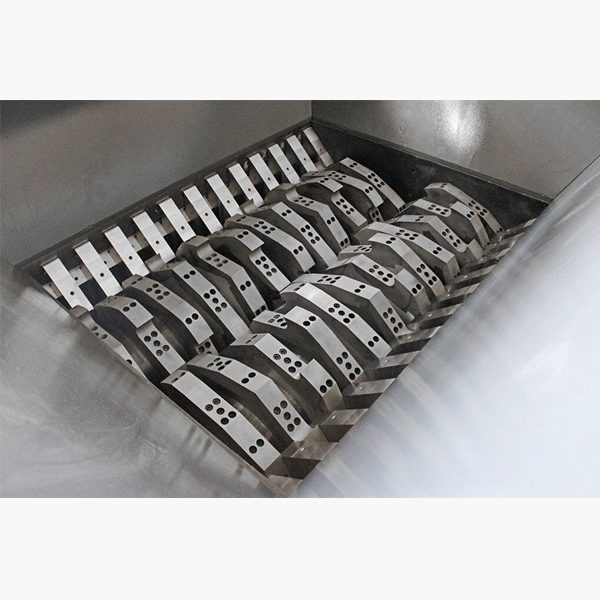

- High strength cutters and spacers manufactured from high quality, heat treated steel alloys
- Individual cleaning fingers mounted to the chamber sidewalls
- Advanced adjustable sealing system for the bearings
- Modular chamber design with split endplates and bearing housings
- Stand-alone electrical control panel with Siemens PLC control system
- Tested, approved and certified to the applicable CE safety standards
Specifications
X1300~X1600
| Model | X1300 | X1600 |
| Dimension (L x W x H) (mm) | 4900 x 2210 x 2600 | 5150 x 2210 x 2600 |
| Hopper Opening (L x H) (mm) | 1300 X 880 | 1600 X 880 |
| Discharge Height (mm) | 970 | 970 |
| Rotation Diameter (mm) | Φ515 | Φ515 |
| Rotation Speed (RPM) | 5.4-15 | 5.4-15 |
| Number of Blades (PCS) | 13+13 | 16+16 |
| Blade Width (mm) | 50 | 50 |
| Main Drive (kW) | 37+37 | 45+45 |
| Hopper Volume(L) | 1700 | 2000 |
| Weight (kg) | Approx 11000 | Approx 11400 |
X1500~X1800
| Model | X1500 | X1800 |
| Dimension (L x W x H) (mm) | 6350 x 2600 x 4000 | 7000 x 3050 x 4000 |
| Hopper Opening (L x H) (mm) | 1500 x 1440 | 1800 x 1440 |
| Discharge Height (mm) | 1550 | 1550 |
| Rotation Diameter (mm) | Φ750 | Φ750 |
| Rotation Speed (RPM) | 5.4-12 | 5.4-12 |
| Number of Blades (PCS) | 15+15 (50mm)/ 10+10 (75mm) | 12+12 (75mm)/9+9(100mm) |
| Blade Width (mm) | 50/75 | 75/100 |
| Main Drive (kW) | 55+55 | 75+75 |
| Hopper Volume(L) | 3600 | 4000 |
| Weight (kg) | Approx 27700 | Approx 32450 |
