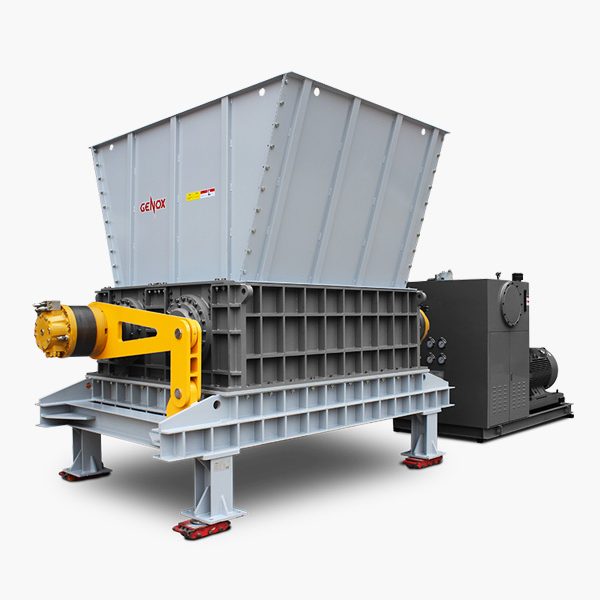

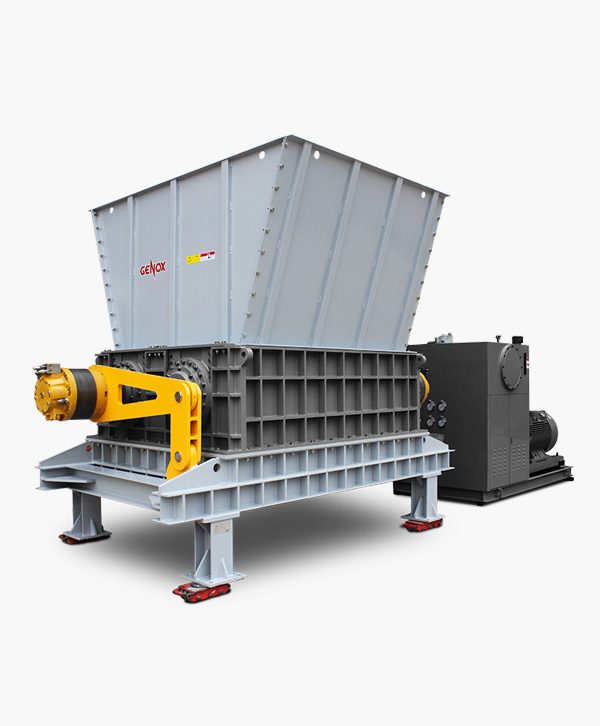

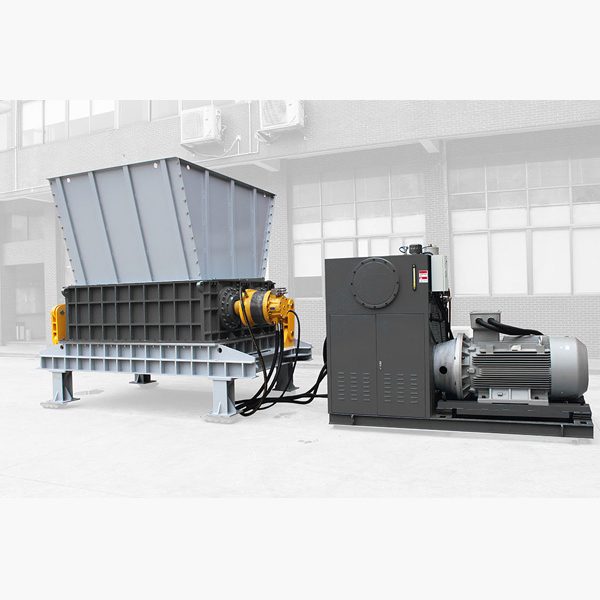

TS Series Shredders
TS Series Shredders
Typical Applications Include:
- Household Waste (MSW)
- Commercial & Industrial Waste (C&I)
- Hazardous Waste
Description
The TS Series Two Shaft Shredders are low speed, high torque, hydraulic driven size reduction machines. The shredding shafts are bi-directional, therefore increasing the cutting efficiency and capacity of the machine whilst maximising knife utilisation.
Features
- Slow speed high torque shredding principle
- Low dust and low noise operation
- Rugged, low maintenance design
- Strong blades manufactured from high quality alloy steels, suitable for shredding tough materials
- Advanced adjustable sealing system prevents product migration and ensures long bearing service life
- Modular chamber design with split endplates and bearing housings, allows quick access to key components
- Stand-alone electrical control panel with Siemens PLC Control System
- Tested, Approved and Certified to the applicable CE safety standards
Specifications
TS1600~TS2000
| Model | TS1600 | TS2000 |
| Dimension (L x W x H) (mm) | 3750 × 2920 × 3200 | 4150 × 2920 × 3200 |
| Hopper Opening (L x H) (mm) | 1600 × 1600 | 2000 × 1600 |
| Discharge Height (mm) | 470 | 470 |
| Rotation Diameter (mm) | Φ790 | Φ790 |
| Operation Length (mm) | 1600 | 2000 |
| Rotation Speed (RPM) | 0~22 | 0~22 |
| Number of Rotor Knives | 154 | 192 |
| Number of Counter Knives | 24+26+2+4+2 | 30+32+2+4+2 |
| Main Drive - Hydraulic (kw) | 160 | 220 |
| Weight (kg) | Approx 19000 | Approx 2000 |
