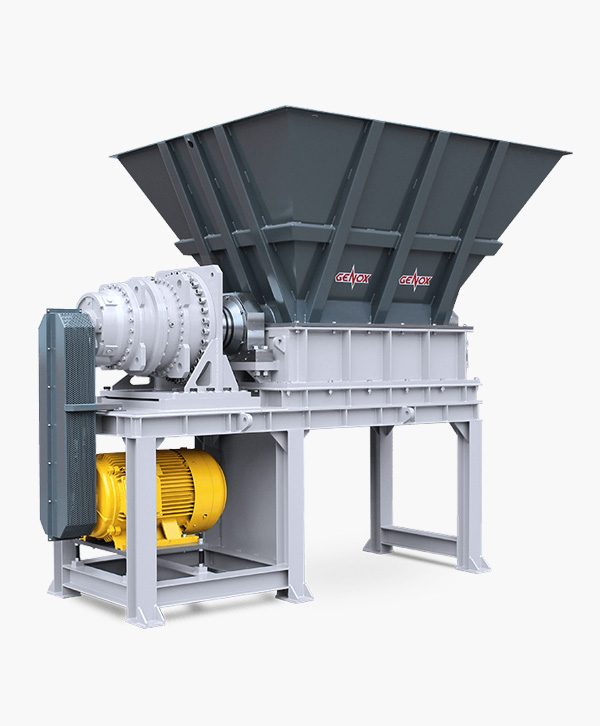

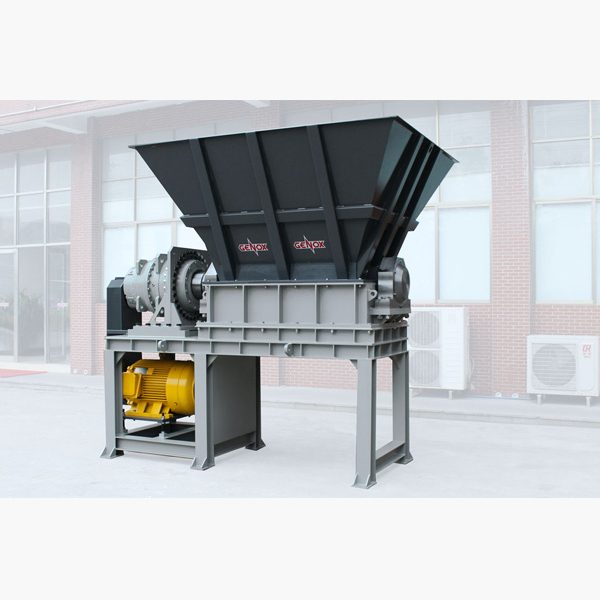

YS Series Shredders
YS Series Shredders
Typical Applications Include:
- Plastic films – agricultural film, film from landfills, etc.
- Ropes – PP/nylon ropes, etc.
- Raffia – PP big bags, etc.
Description
The YS Series Pre-Shredders are designed for processing high strength and tough materials with high levels of contamination. The machine works to reduce compressed and baled material into uniform sized pieces in a single pass. Film type materials are opened up to enable effective cleaning and drying. These shredders are usually positioned at the front of a film washing system, but the machines can also operate as stand-alone units for in-house recycling.
Features
- Slow speed high torque shredding principle
- Low dust and noise operation
- Low maintenance design.
- Double shredding blades manufactured from high quality steels, suitable for shredding tough materials
- Advanced adjustable sealing system prevents product migration
- Stand-alone electrical control panel with Siemens PLC control system
- Tested, approved and certified to the applicable CE safety standards
Specifications
YS1000~YS1500
| Model | YS1000 | YS1300 | YS1500 |
| Dimension (L x W x H) (mm) | 1200 × 1330 × 1850 | 1380 × 1170 × 2200 | 1950 × 3550 × 3820 |
| Hopper Opening (L x H) (mm) | 1600 × 1500 | 1900 × 1500 | 2100 × 1500 |
| Rotation Diameter (mm) | Φ600 | Φ600 | Φ600 |
| Operation Length (mm) | 1000 | 1300 | 1500 |
| Rotation Speed (RPM) | 8-16 | 8-16 | 8-16 |
| Number of Rotor Knives | 20 | 24 | 28 |
| Number of Counter Knives | 12 | 14 | 16 |
| Main Drive (kW) | 55 | 75 | 90 |
| Weight (kg) | Approx 3900 | Approx 4700 | Approx 5700 |
Video
