J Series Shredders
J Series Shredders
Typical Applications Include:
- Pipe – Large Diameter Thick Walled Pipes, Corrugated Pipes etc.
- Rolled Materials – Carpets, Artificial Grass, Industrial Reels etc.
- Bins & Containers – Wheelie Bins, Crates etc.
Description

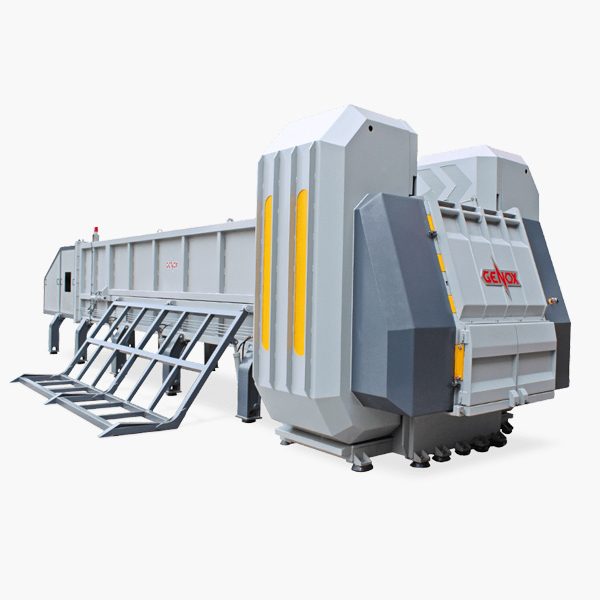

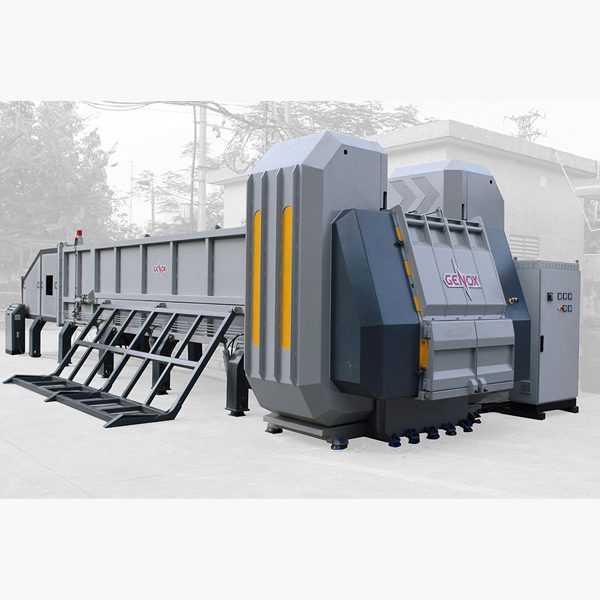

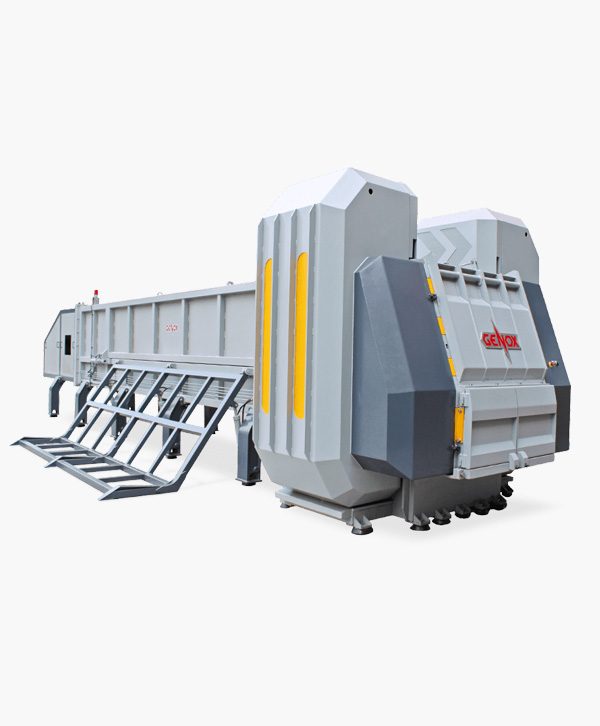

The J Series Pipe Shredders are the ideal size reduction solution for large diameter pipe and rolled feed stocks. The multi-rotor design allows it to maximise cutting efficiency and reduce current turbulence. J Series shredders can also be used for thin walled pipe shredding.
Features
- Multi-rotor design – the number of rotors can be specified according to the material size.
- High shear cutting between rotor and counter knives, suitable for thin wall pipe shredding.
- Long Life counter knives can be adjusted to maintain cutter clearance.
- Shock absorbing gearboxes reduces stress on drive components.
- Segmented loading chamber floor with brass guides.
- Feed chamber auto-lock system to ensure safety.
- High strength hydraulic cylinder with reinforced support frame, adjustable ram speed.
- Large feed with hydraulic tipper for optimised material loading.
- Stand-alone electrical Control Panel with Siemens PLC control system.
- Tested, approved and certified to the applicable CE safety standards.
Specifications
J800~J1200
| Model | J800 | J1200 |
| Dimension (L x W x H) (mm) | 7200 x 2340 x 1930 | 12400 × 4270 × 3130 |
| Discharge Height (mm) | 500 | 500 |
| Rotor Operation Length (mm) | 890 | 1290 |
| Number of Rotors (pcs) | 2 | 4 |
| Rotation Speed (RPM) | 80 | 80 |
| Pipe Max Diamater (mm) | 800 | 1200 |
| Screen Size (mm) | Φ60 | Φ60 |
| Number of Rotor Knives | 60 | 150 |
| Number of Counter Knives | 2 | 3 |
| Main Drive (kW) | 45+30 | 45+3x30 |
| Hydraulic Power Pack (kW) | 11 | 18.5 |
| Weight (kg) | Approx 15000 | Approx 24500 |
