K Series Shredders

K Series Shredders

Typical Applications Include:

  • Plastics – mouldings, purging/Lump, profiles, films
  • Copper Cable – household, automotive, telecoms and industrial cables including S.W.A.
  • Aluminium – used beverage Cans, swarf, cables
  • Paper & cardboard – confidential documents, production waste, packaging materials
  • Textiles – carpet (rolls and tiles), garments
  • Foam – production waste, insulation materials, product fillings
  • Security destruction – counterfeit items, faulty goods, out of date stocks
  • Mixed household & commercial wastes – RDF/SRF production

Share this product

Description

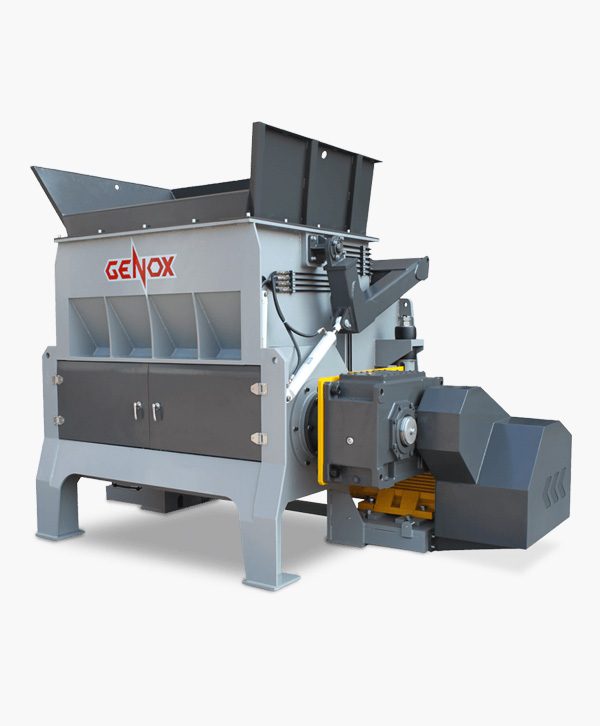

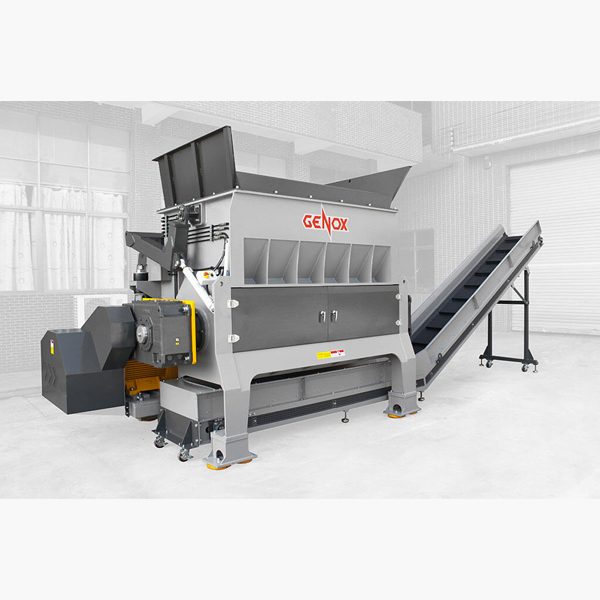

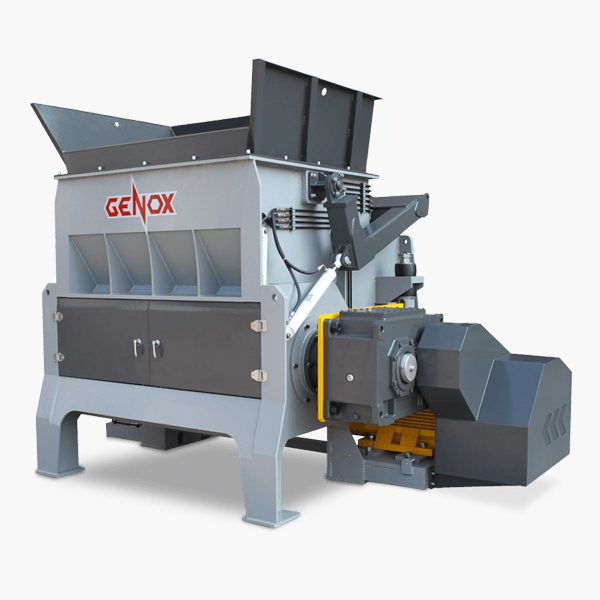

The K Series Single Shaft Shredders are heavy duty machines suitable for processing a wide range of materials. This range is ideal for the size reduction of flexible and/or medium hardness hollow products often loaded in bales. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor loading, maximizing material throughput.

Features

  • Energy efficient + maximum cutting force and productivity

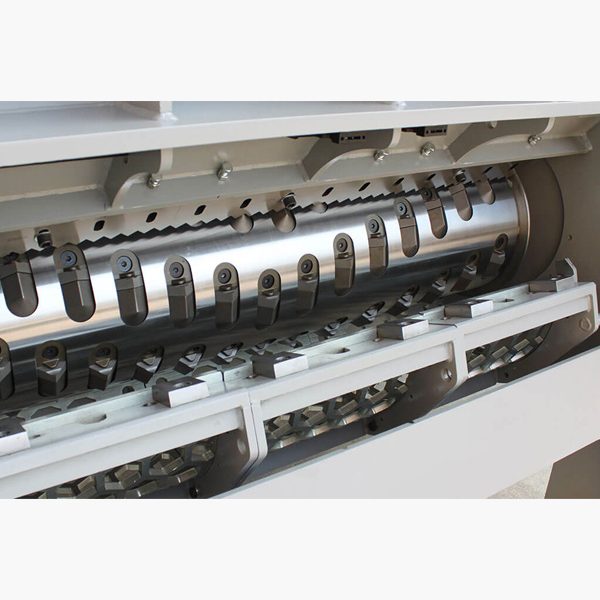

  • Long life counter knives can be adjusted to maintain cutter clearance

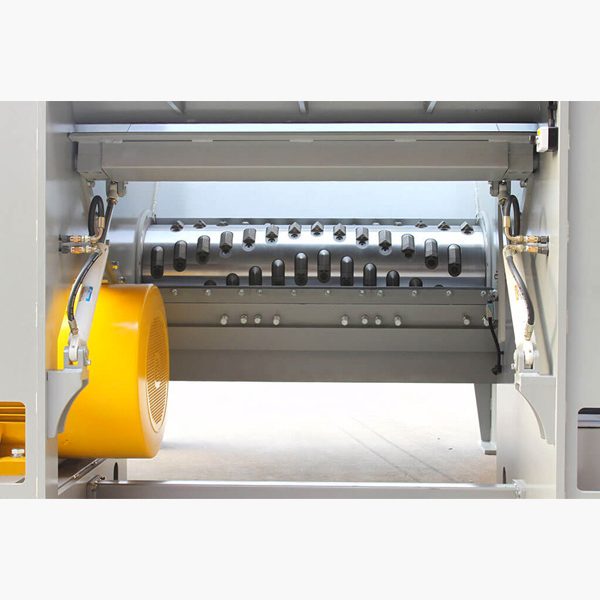

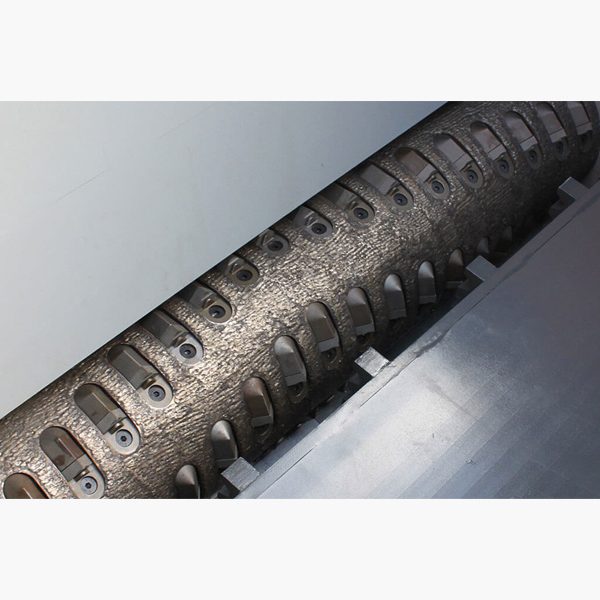

  • Rotor Knives can be rotated and used on four edges before replacement
  • Shock-absorbing gearbox reduces stress on drive components

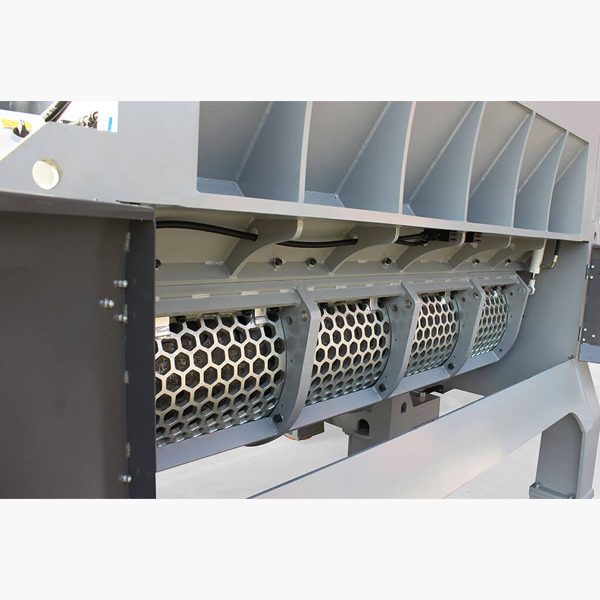

  • Quick change screens for accurate particle size control

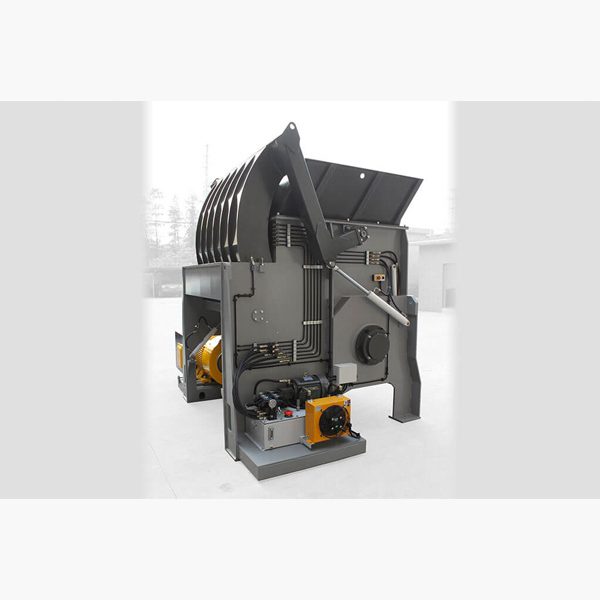

  • Swing ram pusher with exchangeable PU slides
  • Twin speed hydraulics with integrated air cooler
  • Quick access to the rotor via the rear chamber access door
  • Stand-alone electrical control panel with Siemens PLC Control System
  • Tested, approved and certified to the applicable CE safety standards

Specifications

K1500~K2000
Model K1500 K2000
Dimension (L x W x H) (mm) 2230 × 3660 × 2970 2230 × 3710 × 2970
Hopper Opening (L x H) (mm) 1360 × 1910 1360 × 2410
Discharge Height (mm) 460 460
Rotation Diameter (mm) Φ480 Φ480
Operation Length (mm) 1600 2100
Rotation Speed (RPM) 80 80
Ram (mm) 1000 1000
Number of Rotor Knives 88 95
Number of Counter Knives 3+3 4+4
Main Drive (kW) 110 55+55
Hydraulic Power Pack (kW) 11 11
Weight (kg) Approx 12500 Approx 15000
K1700~K2800
Model k1700 k2200 k2800
Dimension (L x W x H) (mm) 2400 × 3860 × 3410 2400 × 4500 × 3410 2400 × 5100 × 3410
Hopper Opening (L x H) (mm) 1410 × 2110 1410 × 2110 1410 × 2110
Discharge Height (mm) 550 600 600
Rotation Diameter (mm) Φ650 Φ650 Φ650
Operation Length (mm) 1750 2300 2850
Rotation Speed (RPM) 80 80 80
Ram (mm) 1000 1000 1000
Number of Rotor Knives 94+6 109+6 125+6
Number of Counter Knives 3+3 4+4 5+5
Main Drive (kW) 132 90+90 110+110
Hydraulic Power Pack (kW) 11 15 15
Weight (kg) Approx 14000 Approx 18000 Approx 22000
K1800~K3000
Model K1800 K2400 K3000
Dimension (L x W x H) (mm) 2450 × 4160 × 3590 2450 × 4860 × 3590 2450 × 5460 × 3590
Hopper Opening (L x H) (mm) 1410 × 2310 1410 × 2960 1410 × 3560
Discharge Height (mm) 600 600 600
Rotation Diameter (mm) Φ800 Φ800 Φ800
Operation Length (mm) 1900 2500 3100
Rotation Speed (RPM) 80 80 80
Ram (mm) 1000 1000 1000
Number of Rotor Knives 106 124 156
Number of Counter Knives 3+3 4+4 5+5
Main Drive (kW) 110+110 132+132 160+160
Hydraulic Power Pack (kW) 11 15 15
Weight (kg) Approx 15000 Approx 21000 Approx 26000
